Description
Superior Builds
Damage in the Details
Key Features
| ◁◁◁ Wider 101″ Beam, Taller 27″ Hull Side Height & Larger 45 Gallon Fuel Capacity |
| ◁ Aluminum 5052 H32 Marine Grade Alloy, Thick 0.125 Hull / Deck / Lids |
| ◁ All Welded Construction ” NO RIVETS “ |
| ◁ GEN 2 Hull w “V” Extrusion & 4 Lifting Strakes for Smooth Dry Ride |
| ◁ Two Color Premium Urethane Finish – ” Standard “ |
| ◁ Proprietary TruTaper Gunnels ” Mimicks the Sleek Look of Fiberglass ” |
| ◁ Gen 2 Performance Pad Hull with 4 Lifting Strakes |
| ◁ 25″ Transom w 4″ Setback |
| ◁ Stainless Steel Storage Box Compression Latches – ” Standard “ |
| ◁ All Lids Thru Bolted with SS Hardware ” NO RIVETS ” |
| ◁ Modern Fiberglass Console w Large Area to Flush Mount Electronics – Optional T Top |
| ◁ Two Fibergalss Insulated Livewells – Console & Center Rear Deck w High Speed Pickups & |
| Recirculation Pumps |
| ◁ Convertible “Free Standing” Flip Flop Leaning Post w Fold Down Foot Rest |
| ◁ Port & Starboard Flip-up Rear Seating w Underseat Storage |
| ◁ Rear Deck Port & Starboard Storage Boxes |
| ◁ Insulated Fiberglass Front Deck Fish Box with Overboard Drain |
| ◁ 6 Stainless Steel Pull-up Cleats & ScanStrut Wireless Console Cell Phone Charger |
| ◁ Standard 6 Gauge Trolling Wiring Motor Harness & Dedicated Electronics 10 Gauge Power Circuit |
| ◁ Bow Cushions / Backrests / Lounging Table, Swim Platform, JBL Stereo & Convertible Flip Flop LP |
| ◁ Limited Lifetime Hull Warranty |
STANDARD FEATURES
| Wood Free Construction |
| 5052 Aluminum Marine Grade Alloy |
| Hull Gauge Thickness .125 |
| Limited Lifetime Hull Warranty |
| Polyurea Non-Skid Interior |
| Solid Marine Grade Closed Cell Flotation Foam Throughout Hull |
| Proprietary TruTaper™ Beam Forward Gunnel W VersaTRAC |
| Gen 2 ProMaster™ Pad Hull |
| Premium Fiberglass Console, Livewell/Baitwell and Fish Box |
| Two-Tone Hull Color |
| BayStar Plus Hydraulic Steering |
| Yamaha Control Cables |
| Bow Insulated 100 qt Fish Box/Storage w SS Gas Shock Support & Overboard Drain |
| Bow Anchor Storage |
| ★ Bow Lounging Table with EVA Foam Pad & 2 Drink Holders ★ |
| Forward and Aft Baitwell w Overboard Drains |

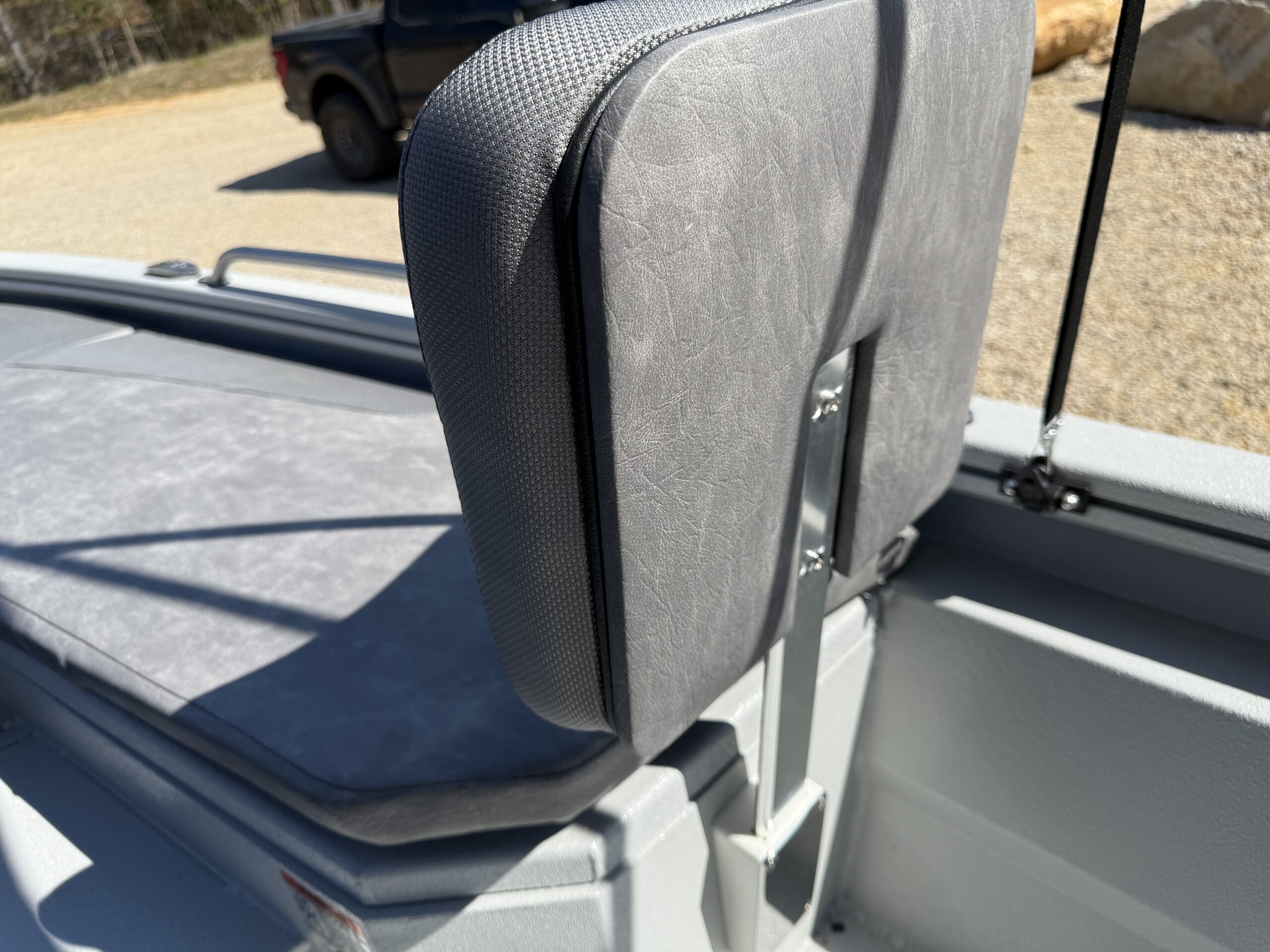

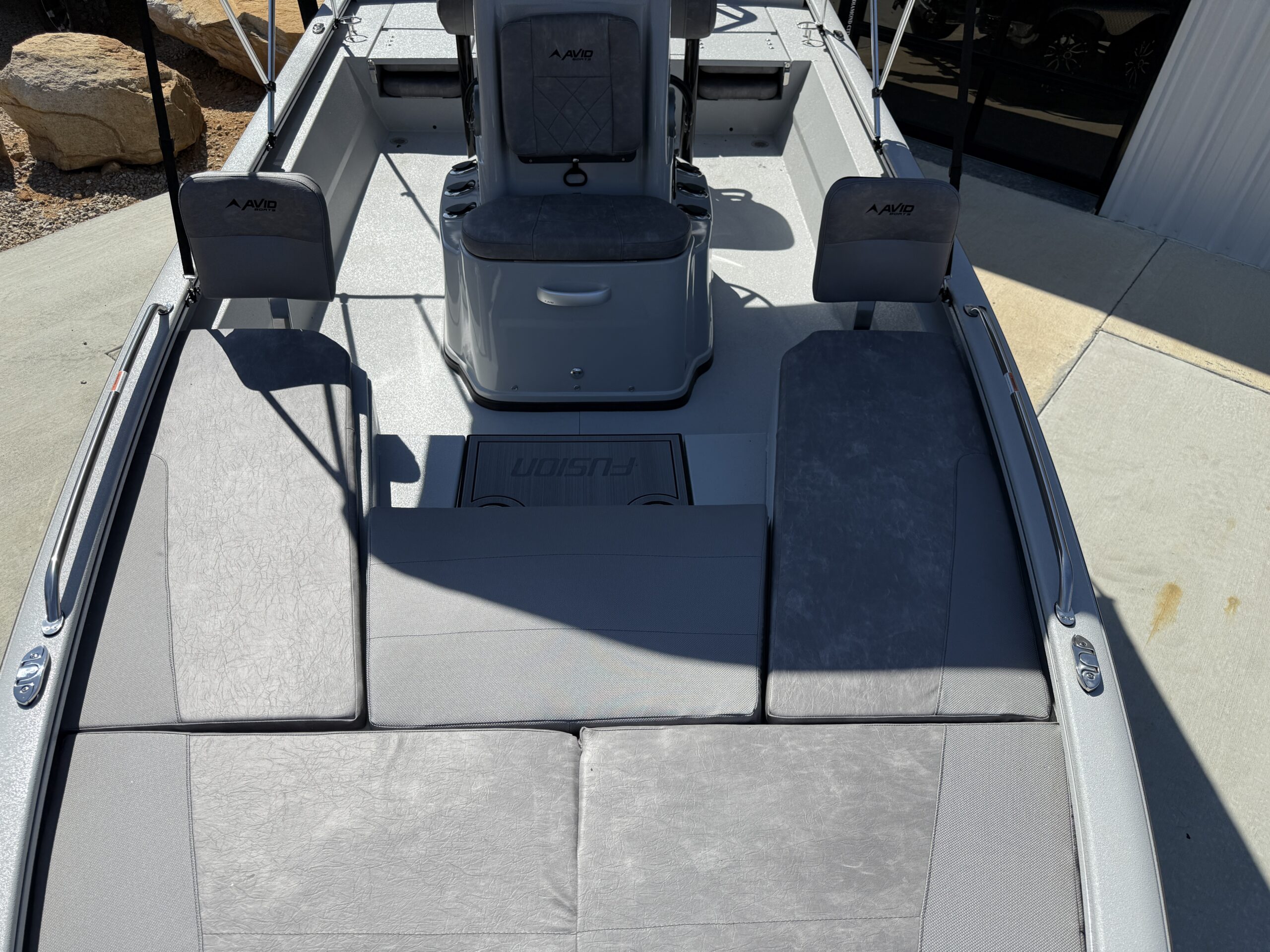

| ★ Plush Front Deck Lounging Cushions with removable Contoured Backrests ★ |
| Plush Rear Deck Jump Seats w SS Latches & Underseat Storage |
| Syntec Vinyl Seating w/ Nano-Block Stain Protection |

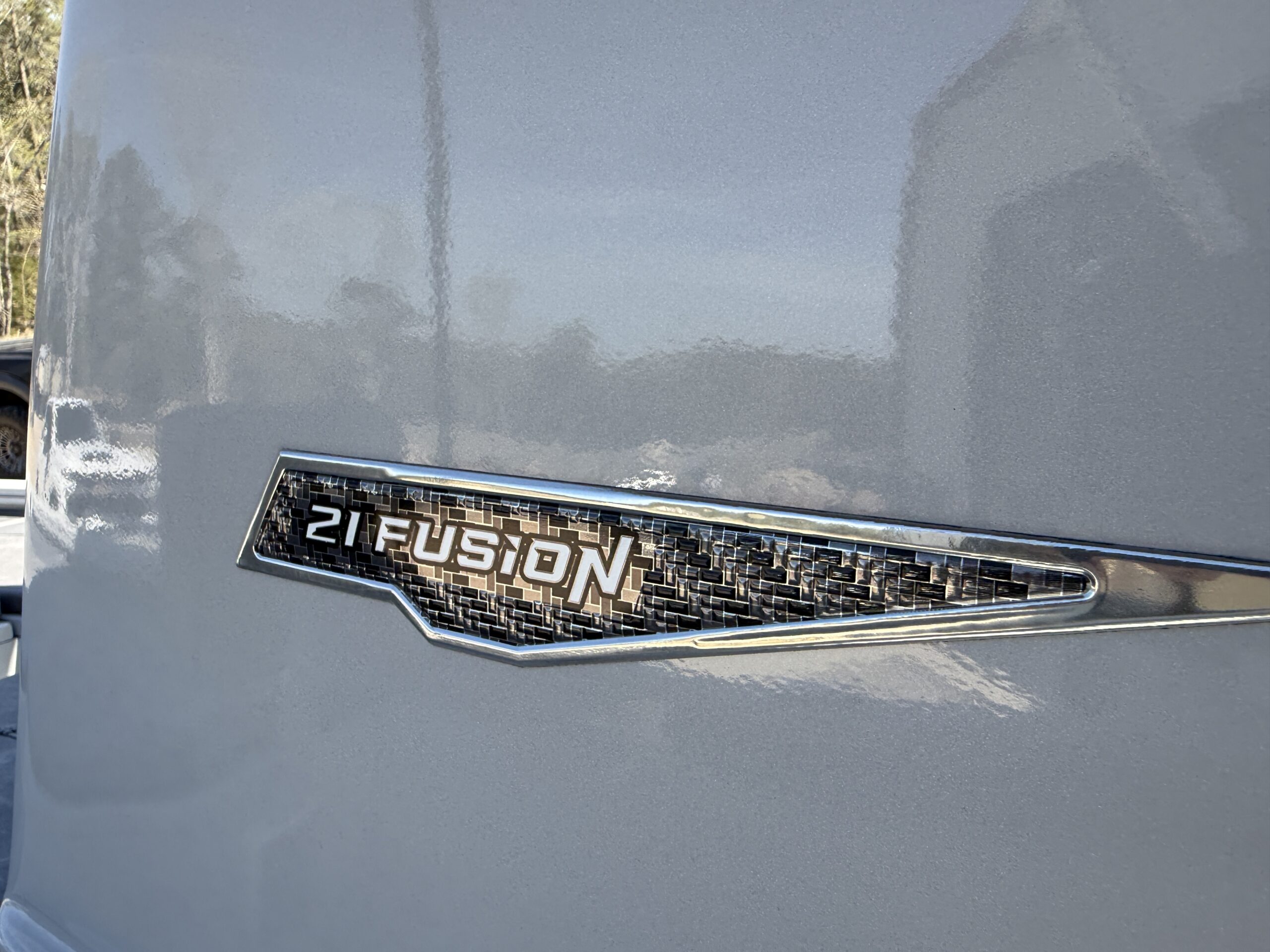

| Custom Chrome Avid Model Designator |
| 4″ Transom Setback |
| Gasket Seal on All Hatches |
| Premium Marine Flooring in All Boxes |
| ★ Swim Platform with Ladder & Stainless Steel Hand Rail ★ |
| Rapid EVAC Cockpit Drain System |
| HARDWARE |
| Premium Stainless Steel Compression Latches |
| Polished Stainless Steel Seat Bases (1) Bow & (1) Rear Deck |

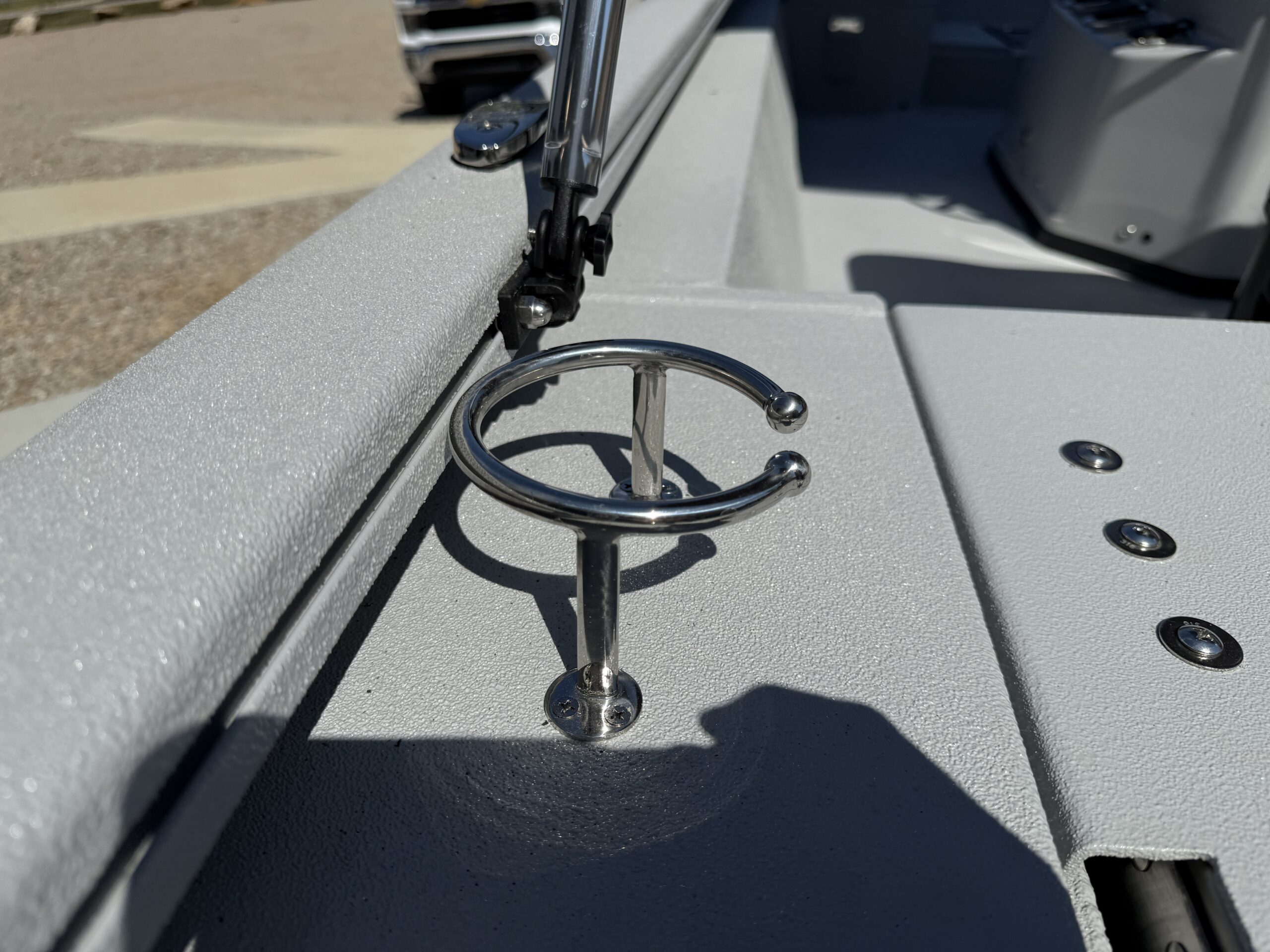

| ★ Stainless Steel Drink Holders – 4 ★ |
| Stainless Steel Pull Up Cleats – 6 |
| Dual Stainless Steel Floor Drains |
| All Thru-Bolted Lids w No Rivets |
| ★ Bow Port & Starboard Stainless Steel Gunnel Hand Rails ★ |
| MARINE GRADE ELECTRICAL SYSTEM |
| Circuit Breaker Protection |
| Dedicated 10 Gauge Electronics Power Circuit |
| Waterproof Stainless Steel Toggle Switches |
| Battery Shut Off Switch |
| Deutsch Electrical Connectors |
| Auto Bilge Pump – 800 GPH |
| 6-Gauge Trolling Motor Harness |
| Bow Trim Switch |
| One Piece Ergonomic Console |

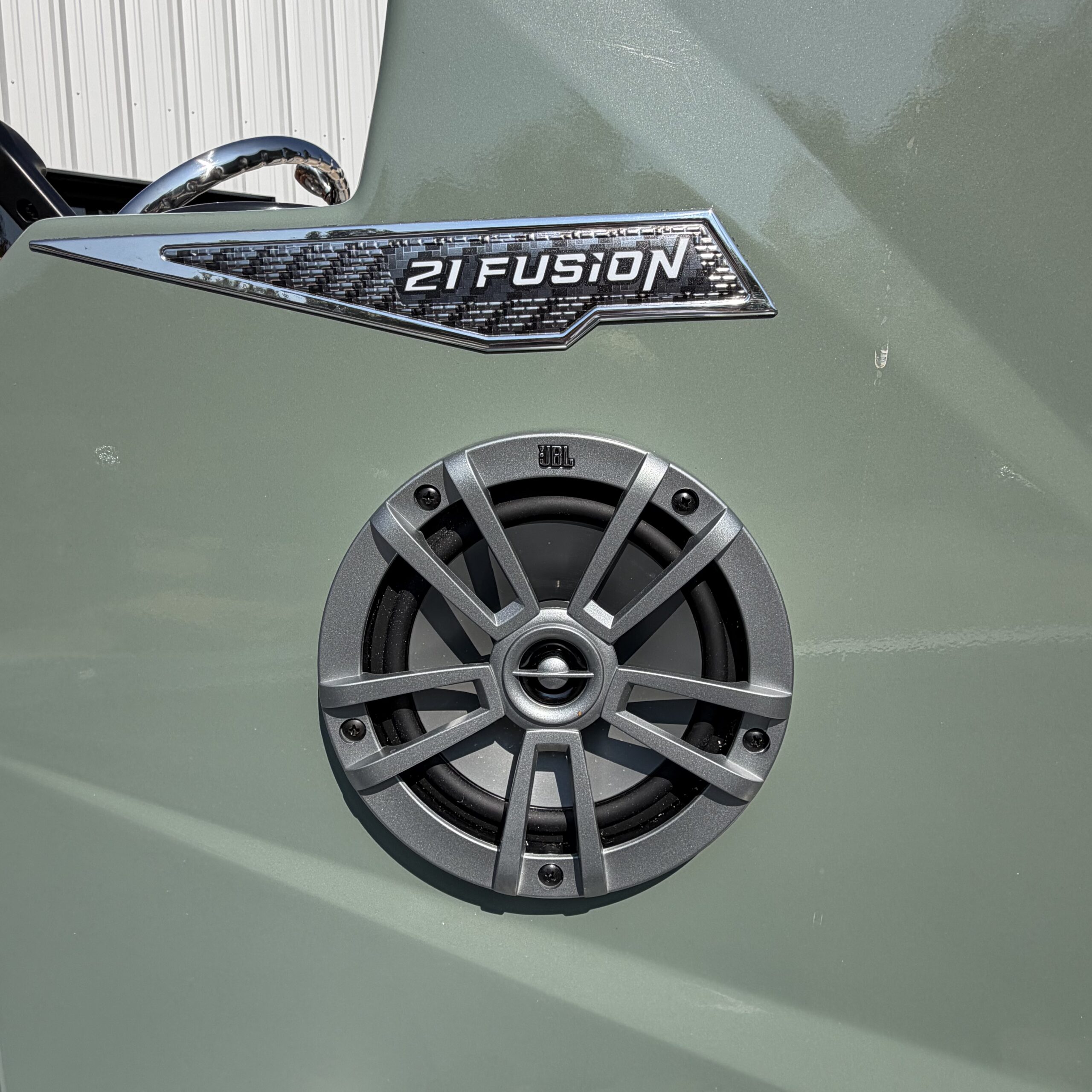

| ★ JBL Stereo with Two 6.5″ JBL Speakers ★ |
| Integrated console grab handles |
| Removable Sport Windshield |
| 3-Spoke Stainless Steel Wheel w/ Power Knob |

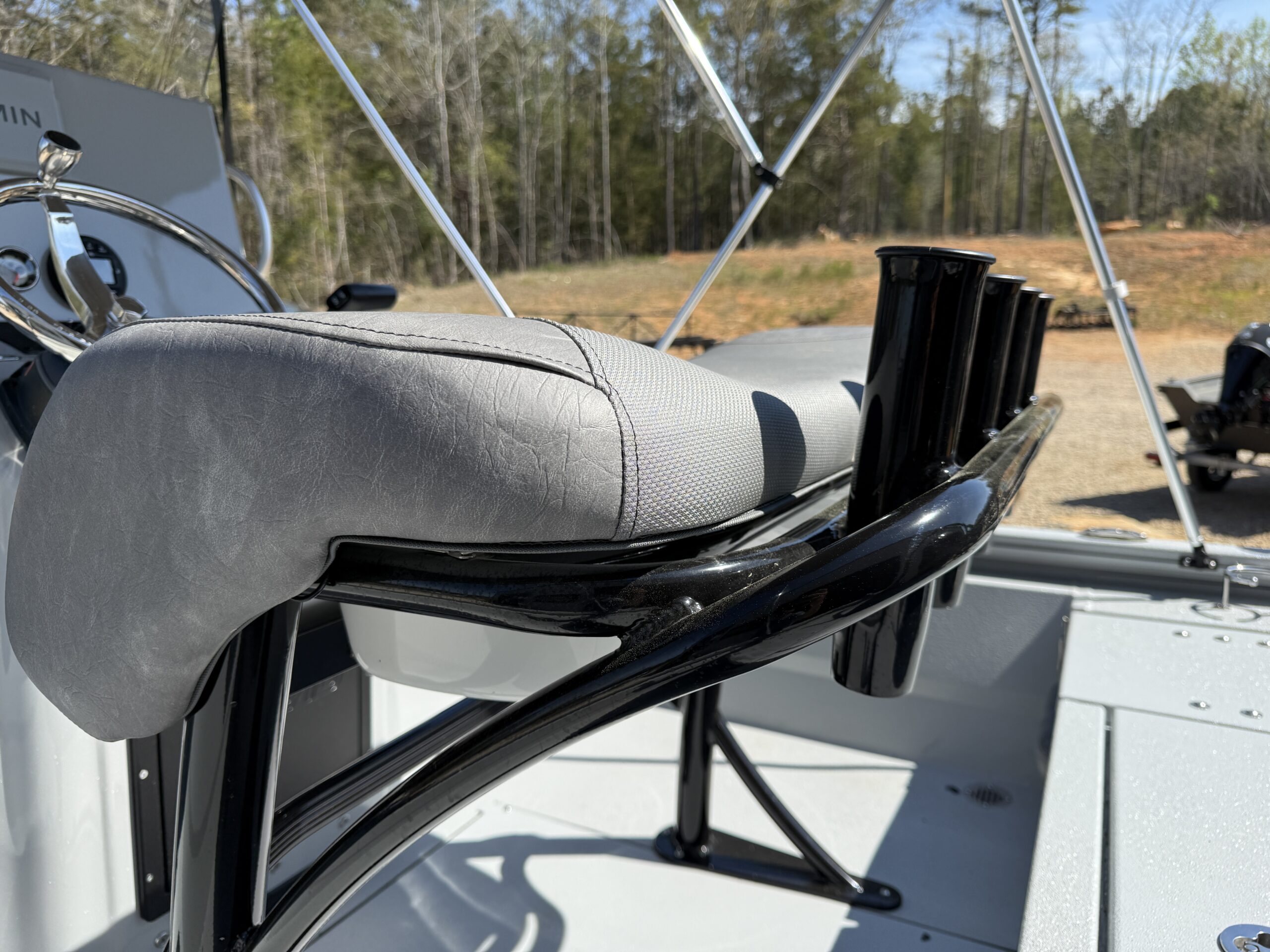

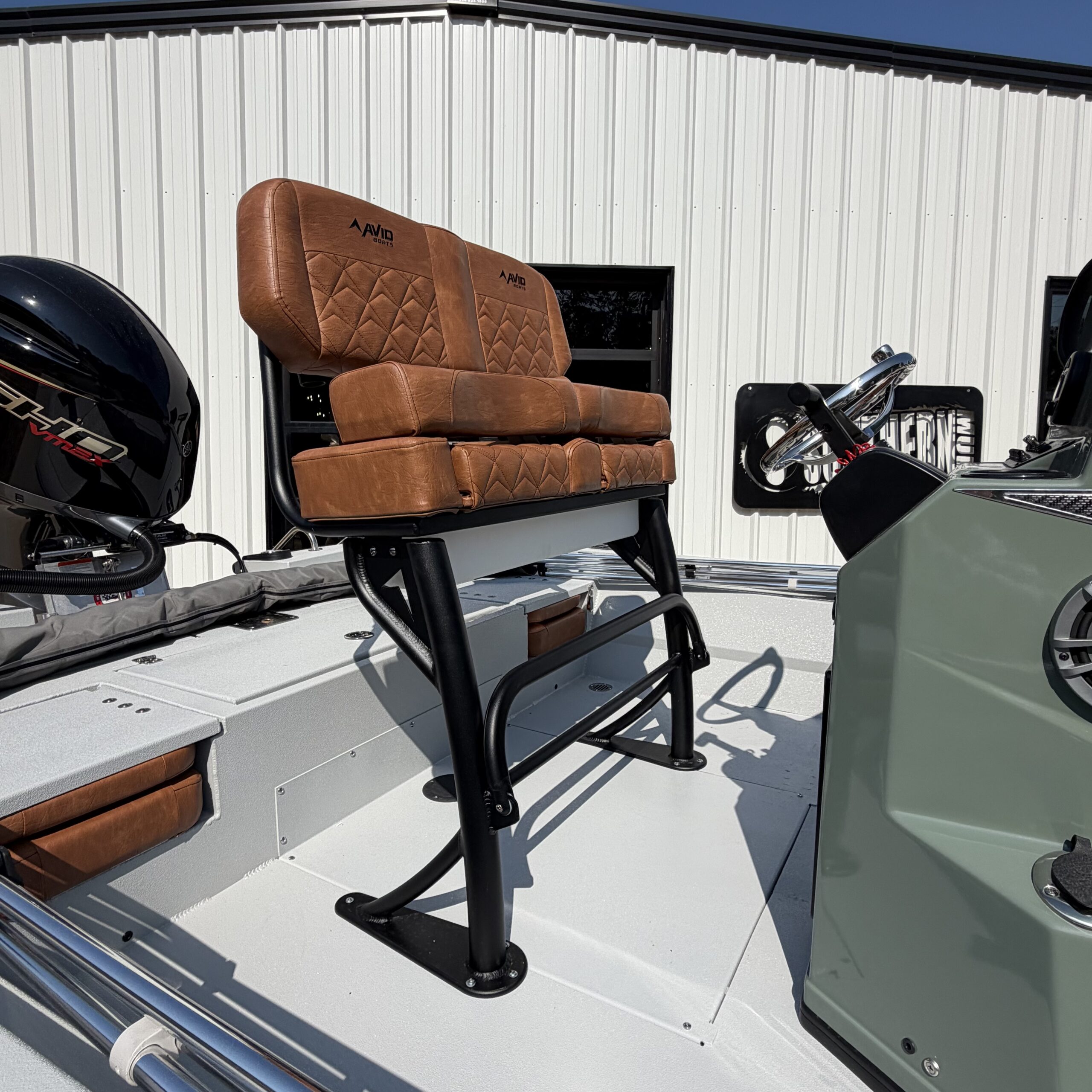

| ★ Plush Convertible “Free Standing” Flip Flop Leaning Post Seat w Fold Down Foot Rest ★ |
| In-Console Baitwell |
| 6 Stainless Steel Vertical Rod Holders |
| Tachometer & Fuel Gauges |
| Horn w/ Stainless Steel Grill |
| Dual USB Outlets |
| ScanStrut Wireless Phone Charger |
| Removable Sport Windshield |
| Blue LED Courtesy Lights |
| Console Catch-All with EVA Foam Pad |
| Recessed Console 5 Drawer Tackle Storage |
| AFT LIVEWELL & FORWARD BAITWELL |
| High Speed Aerator Pickups |
| Recirculation Pumps – 500 GPH w/Max Air System & Timers |
| Aerator Pumps – 800 GPH |
| 1 1/8” Standpipe Overflow/Drain (AFT Livewell) |
| LED Livewell/Baitwell Lights |

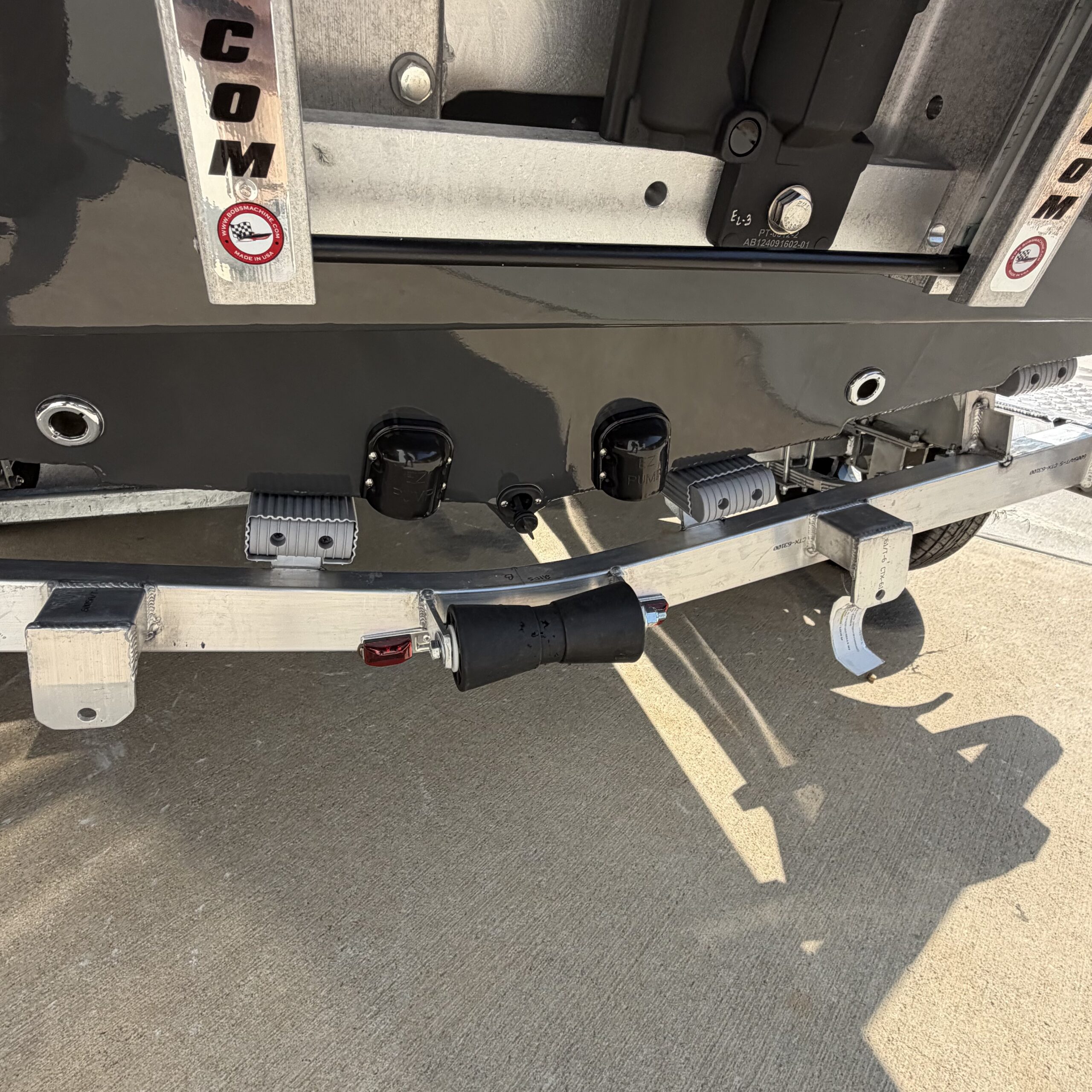

| DIAMOND CITY TRAILER |
| Custom Welded Aluminum Frame |
| Single Axle |

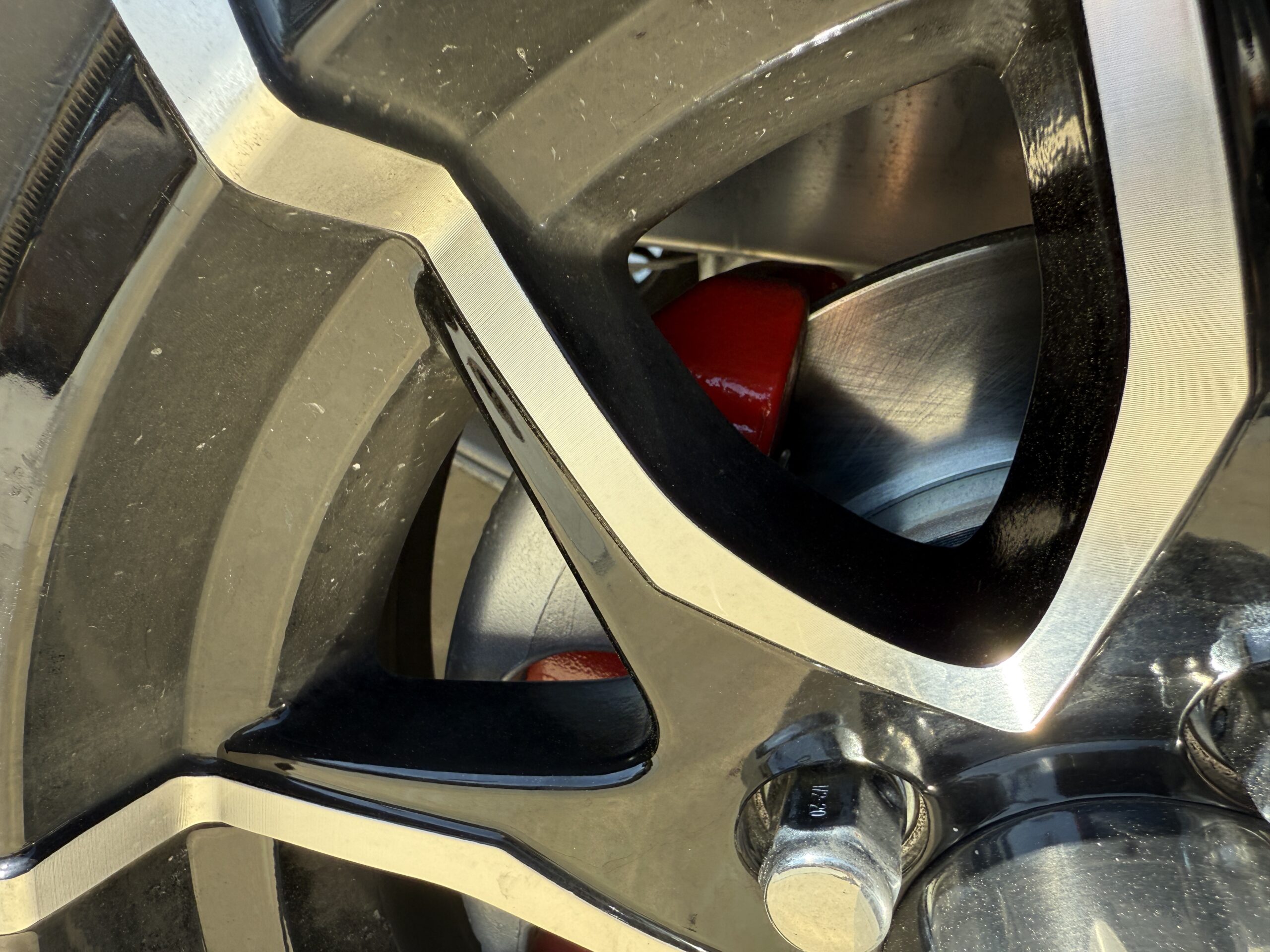

| 14″ Aluminum Mag Wheels |
| Avid Lazer Cut Logo Steps w Amber Backlit LED Lighting |
| Plastic Bunk Wrap |
| LED Lighting w Back Up Lamps |
| Side Guide Poles w Padded Protecters |
| Covered Winch |
| Length |
20′ 7″ |
| Beam |
101″ |
| Transom Height |
25″ |
| Max Horsepower |

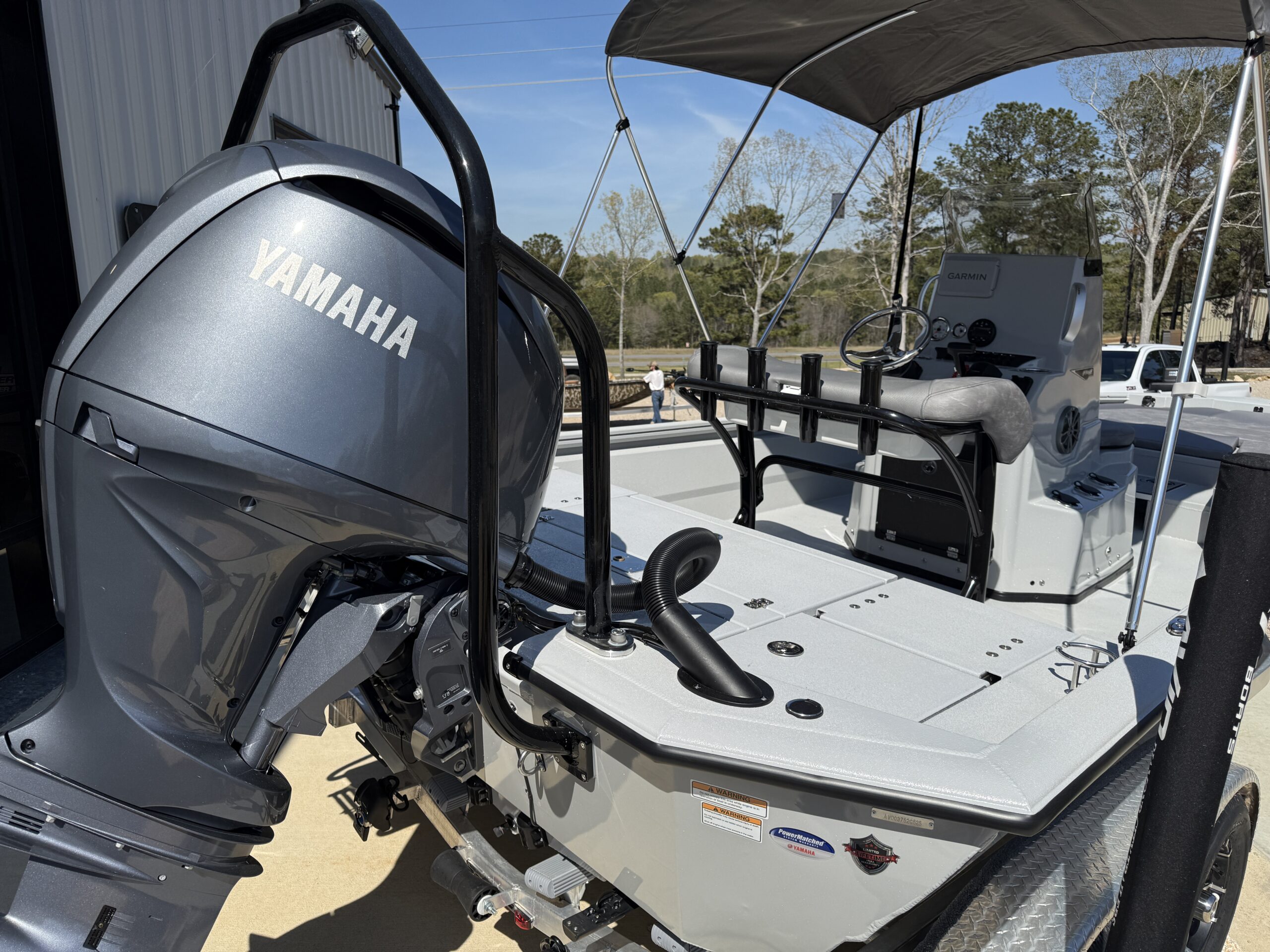

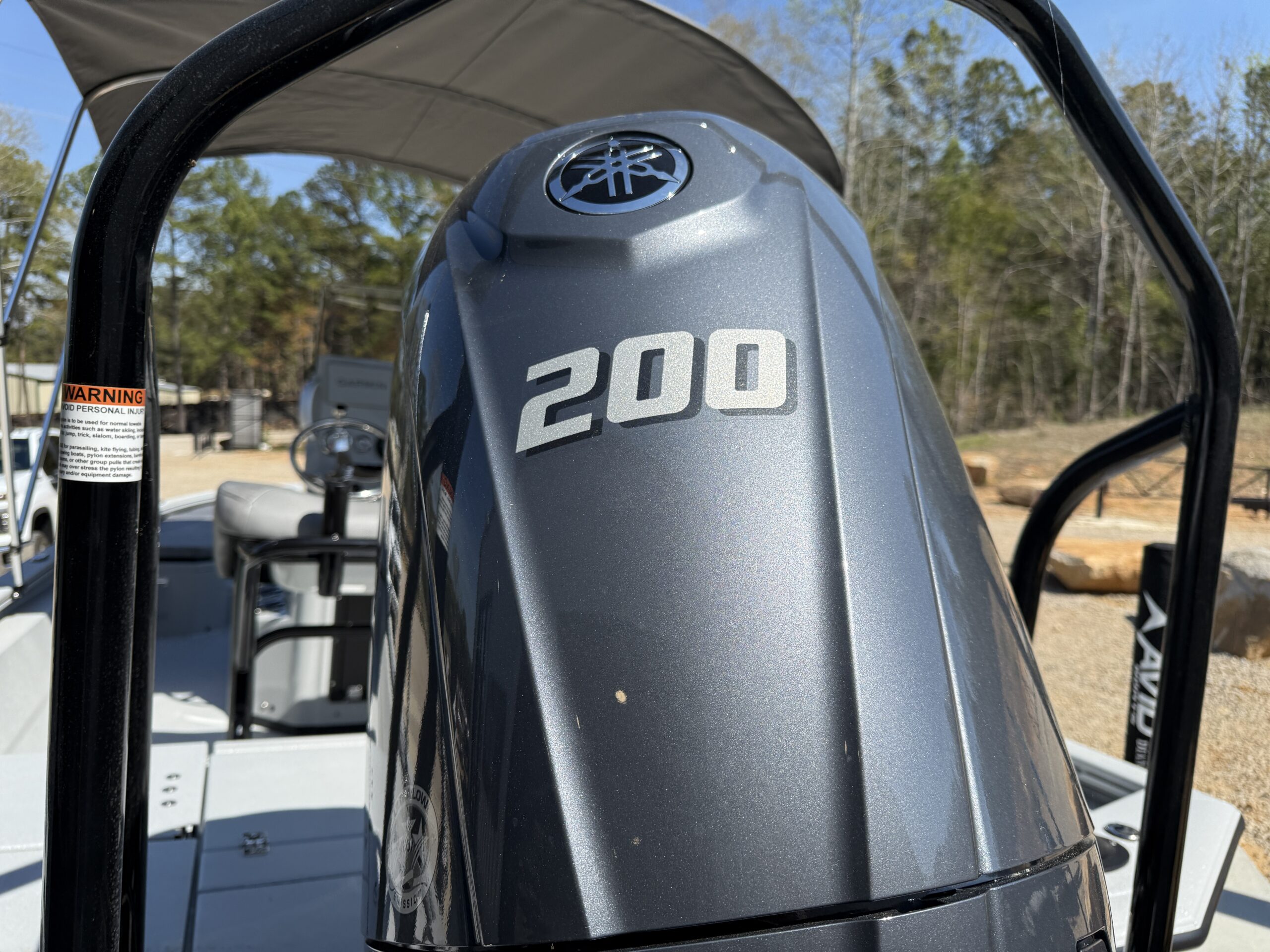

200 HP |
| Side Height |
27″ |
| Bottom Width |
69″ |
| Approximate Draft |
11″ |
| Aluminum- 5052 H32 Marine Grade Alloy |
0.125 |
| Deadrise @ Transom |
13° |
| Deadrise @ Entry |
45° |
| Approximate Boat Weight |
1,565 lbs |
| Fuel Capacity |
45 Gallons* |
| In-Console Livewell/Baitwell |
15 Gallons |
| Aft Livewell |
21 Gallons |
| Dual Bow Rod Boxes with Monster Tubes |
7′ 6″ Rods |
| Bow Fish Box, Overboard Drain |
100 Quarts |
| Rear Deck Port & Starboard Storage Boxes |
55 Quart each |
| Persons and Total Persons Weight |
7/1025 lbs |
| Max Weight Capacity |
1787 lbs |
| In-Water Bridge Height Clearance w optional T Top |
7′ |
| Length on Trailer |
25′ 4″ |
| Height on Trailer w optional T-top |
10′ |
