Description
SPARTAN MOWERS COME STANDARD WITH
PREMIUM COMPONENTS
Superior Builds
Damage in the Details
- Horsepower: 24 HP
- Fuel Capacity: 9.5 Gallons
- Hydraulic Drive: Tuff Torq TZT – 13cc Drive Motors
- Hydraulic Drive Torque: Continuous – 262 ft-lb | Max Torque – 406 ft-lb
- Hydraulic Drive Maintenance: 1,000 Hours Between Oil Change
- Front Tires: 13″ Bias Ply
- Drive Tires: 24″ Reaper
- Wheel Type: Steel
- Speed (F/R): Forward – Up to 9mph | Reverse – Up to 5mph
- Acreage: 3+
- Seat: Deluxe Seat
- Steering Levers: Adjustable Up and Down
- Ignition: Key Switch
- Auxiliary Power: 12v Outlet

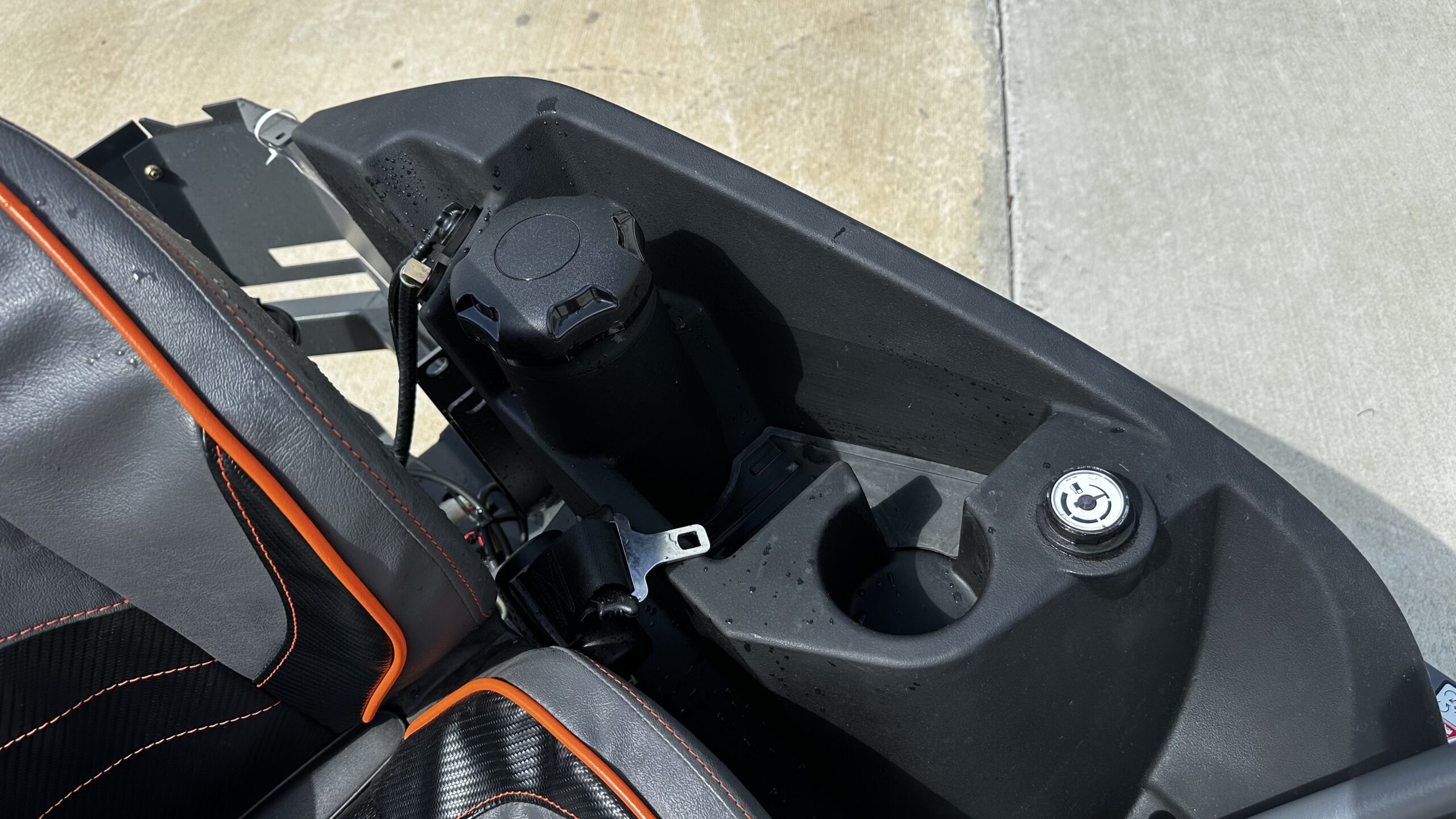

- Storage: Phone Holder, Cup Holder, and Deep Storage Tray
- Hitch: 2” both Front & Rear Receiver Standard
- Deck Size: 61”
- Deck Depth: 6″ Deep, Reinforced 7 Gauge Full-Floating Deck
- Deck Lift: Foot Operated with Shock Assist
- Deck Adjustment: Magnetic Pin Height Adjustment
- Cut Height: 1″ to 5″ with 15 Cut Heights
- Blade Spindles: Cast Aluminum, No Maintenance/Sealed Bearings
- Parking Brake: Foot Operated
- Frame: 1.5”x3” Powder Coated Fusion-Bonded Solid American Steel Bridge Frame
- Width: 61” Deck – 62.5” Wide
- Weight: 1052 – 1099 lbs
- Length: 84″
- Height: 75″ with ROPS Up – 54″ with Folding ROPS Down
- Full Warranty: 2 Year / Unlimited Hour Commercial – 120 Day Belt
- Engine Warranty: 3 Year
- Deck Warranty: Lifetime on Leading Edge
- Hydraulic Drive Warranty: 3 Year / 750 Hour
- Control Panel Warranty: N/A
ALL FEATURES:

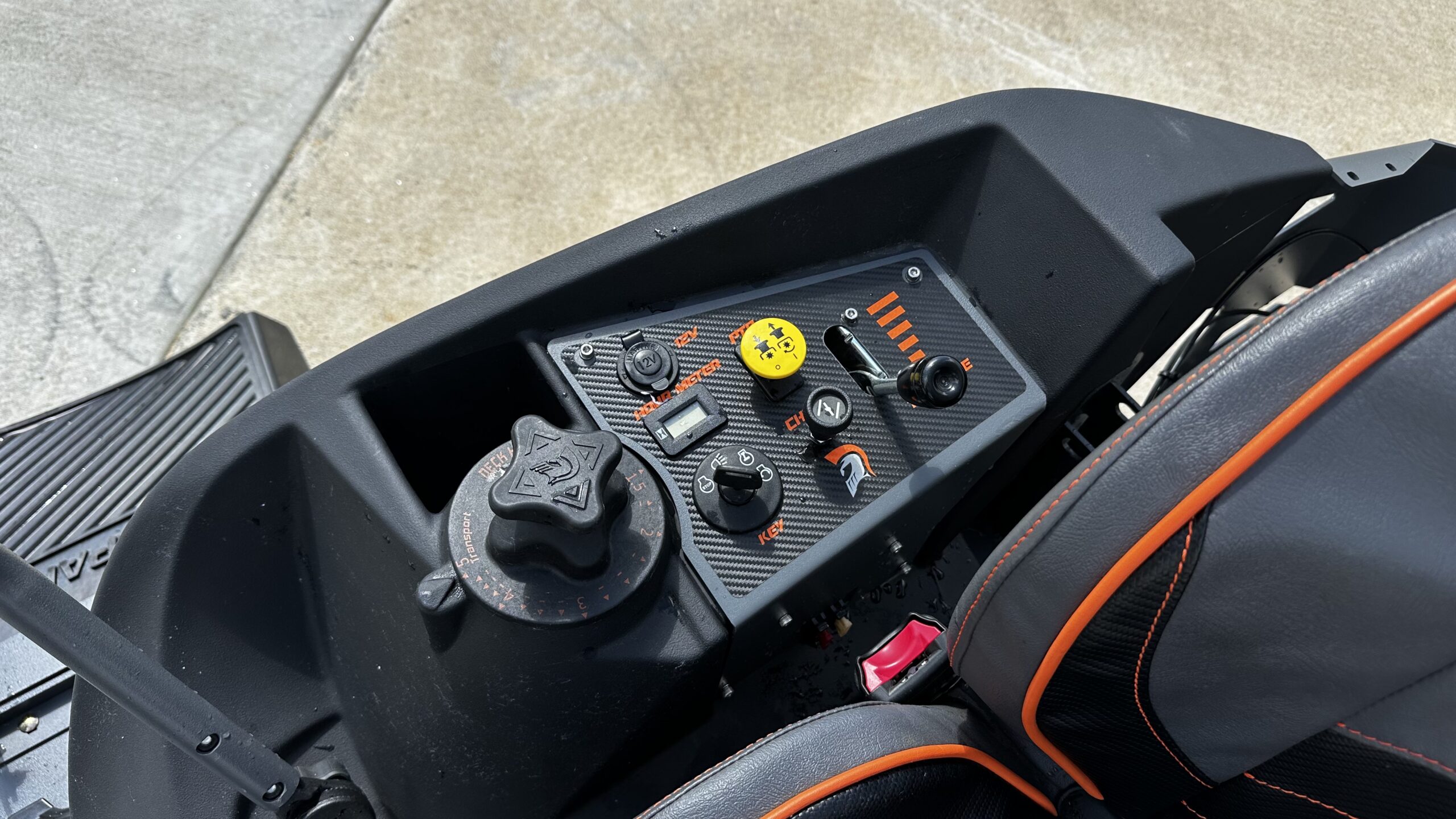

- Versa Guard Personalized Control Panels
- 1 1/2″ x 3″ Tubular Welded Frame
- Magnetic Pin Height Adjustment
- Key Switch Panel
- Foot Operated Deck Lift
- Parker HTG 16cc Transmission
- 17 gal Fuel Capacity
- 6″ Deck Height
- 18,500 FPM Blade Tip Speed
- Protective Side Deck Trim
- GT Trac Stabilization
- Upgraded Spindles
- 12V Outlet
- Large Cup Holder
- Phone Holder in Console
- Storage Tray in Console
- Foot Operated Parking Brake
- Ultra-Premium Dymetrol® Adjustable 3″ Travel Seat
- Folding ROPS
- 7-gauge XTF Deck
- 2″ Receiver Hitch
- TecsPak® Under Seat
- Rear Spring Suspension
- Front Suspension Forks
- Oil Guard System
- Dual Exhaust
- Spoiler Basket
- Oversized Electric Clutch
- Multi-Function Keypad with Soft Start
- 3-year Warranty
- 360-degree Seat Plate
- Adjustable Steering Arms
- Full Beam LED Light Bar
Tricked Out
our standard sets the bar
Up your game with a high-quality mower that is built with comfort and power in mind. Our units are packed with top-of-the-line features and commercial grade components that will be sure to stand the test of time and terrain.
